KG -SOA Series of semiconductor light amplification module
product description：
KG -SOA series semiconductor optical amplification (SOA) module uses high-performance imported SOA, and the use of unique ATC design ensures the stability of the output power. It has high-speed all-optical amplification module and it is completely transparent transmission protocol, which are especially suitable for High - speed optical fiber communication system.
At the same time it can provide desktop packaging to meet the needs of scientific research and testing areas, and the front panel provides power switch, LCD power display, output power mediation knob and the rear panel provides RS232 computer interface.
Product feature:
Low noise index
High working bandwidth
Low degree of polarization correlation
Module package
Application：
Production and performance testing of fiber optic devices
Small signal power amplification
Laboratory research
Optical fiber communication system
performance parameters：
|
Parameter |
Unit |
Min |
Typ |
Max |
||||||
|
Operating wavelength range |
X-band |
nm |
1040 |
|
1080 |
|||||
|
O-band |
nm |
1280 |
|
1340 |
||||||
|
C-band |
nm |
1510 |
|
1590 |
||||||
|
Small signal light gain @-30dBm |
dB |
18 |
22 |
|
||||||
|
Gain fluctuation |
dB |
|
0.5 |
1 |
||||||
|
Saturation output optical power |
dBm |
|
10 |
|
||||||
|
Noise figure @-20dBm |
dB |
|
7.0 |
7.5 |
||||||
|
Output / Output Optical Isolation |
dB |
30 |
|
|
||||||
|
Polarization dependent gain |
dB |
|
0.5 |
1 |
||||||
|
Polarization mode dispersion |
ps |
|
|
0.3 |
||||||
|
Operating temperature range |
℃ |
0 |
|
+40 |
||||||
|
Storage temperature range |
℃ |
-10 |
|
+70 |
||||||
|
Specification |
|
Desktop |
Module |
|||||||
|
Dimensions L x W x H |
|
320×220×90 mm |
90×70×18 mm |
|||||||
|
Power requirement |
|
AC 220V ± 10% 30W |
DC +5V GND |
|||||||
|
Output fiber |
|
SMF/PMF |
||||||||
|
Operating mode |
|
CW、Internal modulation, external signal modulation |
||||||||
|
Optical connector |
|
FC/PC FC/APC or user specified |
||||||||
|
|
|
|
|
|
|
|
||||

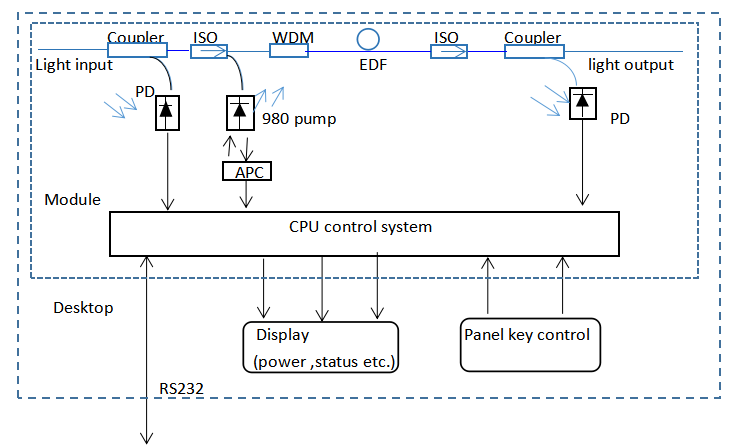

internal structure :

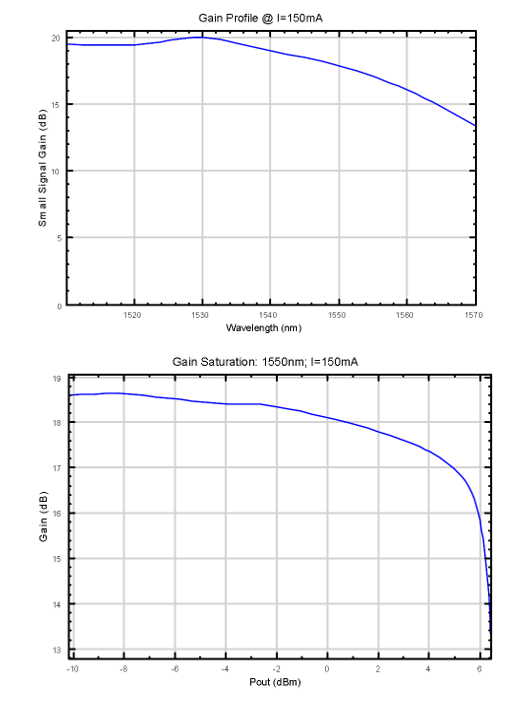

characteristic curve:
order information：
|
KG |
SOA |
X |
XX |
X |
XX |
|
|
Semiconductor fiber amplifier |
Working wavelength： X--X-band O--O-band C--C-band |
Saturation output power 0--0dBm 10--10dBm |
Package form： D--- Desktop M--- Module |
Fiber optic splice： FP --FC/PC FA-- FC/APC |
*please contact our seller if you have special requirements
