KG -DFB Series 852nm DFB Laser Light Source
Annex
Annex
KG -DFB series 852nm DFB laser light source uses foreign high-performance DFB laser chip, unique design of the ATC and APC circuit and isolation control, so it can ensure a very high power and wavelength stability. This product is mainly used in the field of clock frequency measurement, and it can be used with electro-optical modulator, loading time frequency signals. Signal is The signal is transmitted through the fiber. It also can be used in 850nm band optical device measurement, such as hi
Download
product description：
KG -DFB series 852nm DFB laser light source uses foreign high-performance DFB laser chip, unique design of the ATC and APC circuit and isolation control, so it can ensure a very high power and wavelength stability. This product is mainly used in the field of clock frequency measurement, and it can be used with electro-optical modulator, loading time frequency signals. Signal is The signal is transmitted through the fiber. It also can be used in 850nm band optical device measurement, such as high-speed Si-PIN / APD photodetector , the tests of CMOS, CCD and other devices responsiveness or response time.
product feature：
Built-in optical isolator
Module package and desktop package are optional.
Application：
850nmoptical fiber system
Optical frequency comb
Spectral analysis
Time and frequency measurement
Visible light detector test system
performance parameters：
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
||||
|
Operating length |
l |
851 |
852 |
853 |
nm |
||||
|
Output optical power |
Po |
10 |
- |
50 |
mW |
||||
|
3dBspectral width |
Dl* |
- |
- |
2 |
MHz |
||||
|
SMSR |
SMSR |
30 |
45 |
- |
dB |
||||
|
Relative noise intensity |
RIN |
- |
-150 |
-140 |
dB/Hz |
||||
|
Power stability* |
PSS |
- |
- |
±0.005 |
dB/5min |
||||
|
PLS |
- |
- |
±0.01 |
dB/8h |
|||||
|
Output isolator |
ISO |
30 |
- |
- |
dB |
||||
|
Specification |
|
Desktop |
Module |
||||||
|
Dimensions L x W x H |
|
320×220×90 mm |
80×100×24 mm |
||||||
|
Power supply |
|
AC 220V ± 10% 30W |
DC +5V |
||||||
|
Output optical fiber |
|
5.5/125/250µm PMF |
|||||||
|
Operating mode |
|
CW |
|||||||
|
Optical connector ** |
|
FC/PC、FC/APC |
|||||||
|
|
|
|
|
|
|
|
|||
Limit parameters:
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
Operating temperature |
Top |
℃ |
-5 |
|
55 |
|
Storage temperature |
Tst |
℃ |
-40 |
|
85 |
|
Humidity |
RH |
% |
5 |
|
90 |

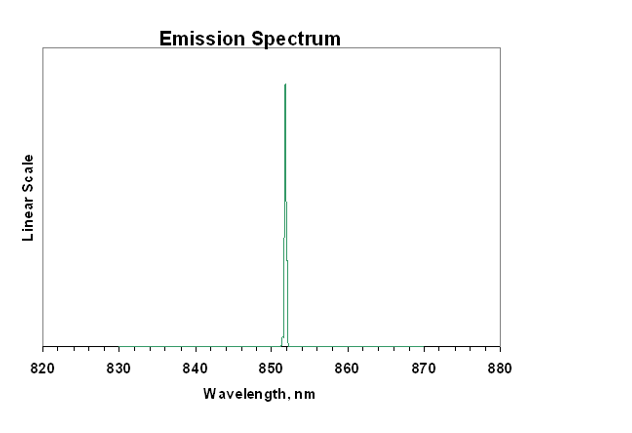

Typical spectrum:
Internal structure:
order information：
|
KG |
DFB |
852 |
X |
XX |
P |
XX |
XX |
|
|
DFB |
Wavelength ： 852nm |
Package ： M---module D---desktop |
Power： 10----10mW 50----50mW |
Pigtail fiber： P ---PMF |
Optical fiber connector： FP ---FC/PC FA ---FC/APC SP---user specified |
Line width： Empty --2MHz 01--1MHz |
*please contact our seller if you have special requirements
