High stability electro - optical intensity modulation module
Annex
Annex
KG-AMBC series of high stability electro-optical intensity modulation module are my company's latest products, which integrates the electro-optical intensity modulator and the corresponding bias circuit and solve the problem of electro-optical intensity modulator modulation performance affected by the external environment, and ensuring that the electro-optical modulator can work stably at QUAN +/-, NULL or PEAK for a long term , and completed miniaturization and easy to system integrate system
Download
KG-PM series 1064nm Series of electro - optical phase modulator
product description：
KG-AMBC series of high stability electro-optical intensity modulation module are my company's latest products, which integrates the electro-optical intensity modulator and the corresponding bias circuit and solve the problem of electro-optical intensity modulator modulation performance affected by the external environment, and ensuring that the electro-optical modulator can work stably at QUAN +/-, NULL or PEAK for a long term , and completed miniaturization and easy to system integrate system.
product feature：
Low insertion loss
High modulation bandwidth
Low half-wave voltage
Classification:
Optional wavelength:1310nm、1550nm and so on
Modulation bandwidth ：10GHz、20GHz、40GHz
Application：
High-speed optical fiber transmission equipment
Microwave photon link
Phase array
performance parameters：
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
||
|
Optical parameters |
|||||||
|
Operating wavelength |
l |
1525 |
|
1565 |
nm |
||
|
Insertion loss |
IL |
|
4 |
5 |
dB |
||
|
Optical return loss |
ORL |
|
|
-45 |
dB |
||
|
Switch extinction ratio@DC |
ER@DC |
25 |
|
|
dB |
||
|
Output optical power stability |
|
|
0.2 |
|
dB |
||
|
Optical fiber |
input side |
|
Panda PM Fujikura SM 15-P-8/125-UV/UV-400 |
||||
|
output side |
|
Corning SMF-28 |
|||||
|
Optical interface |
|
FC/PC、FC/APC or user specified |
|||||
|
Electrical parameters |
|||||||
|
Operating bandwidth （-3dB） |
S21 |
10 |
12 |
|
GHz |
||
|
Half-wave voltage Vpi |
RF |
Vπ@50KHz |
|
|
5 |
V |
|
|
Bias |
Vπ@Bias |
|
|
6 |
V |
||
|
Electrical return loss |
S11 |
|
-12 |
-10 |
dB |
||
|
Input impedance |
RF |
ZRF |
50 |
W |
|||
|
Electrical interface |
|
SMA(f) |
|||||
Limit parameters :
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
||||
|
Output optical power |
Pin,Max |
dBm |
|
|
20 |
||||
|
RF output power |
|
dBm |
|
|
28 |
||||
|
Operating voltage |
Vb |
V |
|
+/-12 |
|
||||
|
Operating temperature |
Top |
℃ |
-10 |
|
60 |
||||
|
Storage temperature |
Tst |
℃ |
-40 |
|
85 |
||||
|
Humidity |
RH |
% |
5 |
|
90 |
||||

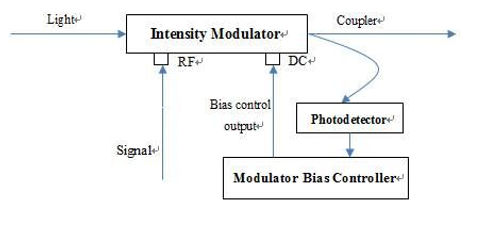

Schematics:

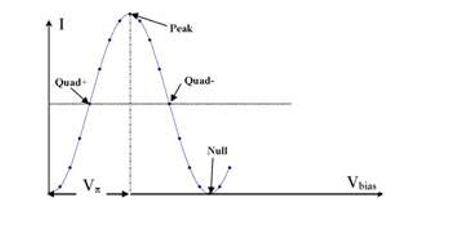

Characteristic curve:
Dimensions(nm):
order information：
|
KG |
AMBC |
15 |
10G |
XX |
XX |
|
|
Modulator type ： AMBC ---Intensity modulator integrated bias point control circuit |
Operating Wavelength ： 15---1550nm |
Operating bandwidth ： 10G---10GHz |
Input output optical fiber ： PS ---PM/SMF |
Connector ： FA ---FC/APC FP ---FC/PC SP---user specified |
*please contact our seller if you have special requirements
